Description
MorphoWave™ Compact technical specifications :
- CPU: Nvidia ARM Cortex-A15 Quad- Core 2.1GHz
- 4.3” WVGA color capacitive touchscreen
- Loudspeaker & microphone Intercom function
- Audio & video player
- Touchless fingerprint sensor Hand presence detection QR code scanning capability (in option)
- Contactless reader options: Prox, iClass, MIFARE/DESFire
- Tamper switches
- Internal storage capacity: 16GB Flash,2GB RAM
– 20,000 user records (2*4 fingers each)
for 1:N identification, extendable to
40,000 with licenses(4)
– 250,000 IDs in authorized user list
– 1 Million transaction logs - Network/Communication:
– Ethernet, RS485, RS422, USB
– Wi-Fi and 4G options - Inputs/outputs:
Wiegand In & Out (customizable up to
512 bits), Door Relay, 3 GPI (including
Door monitoring), 3 GPO - Power supply: 12 to 24 V DC (2.5A min @12V)
Power over Ethernet with PoE+ switches - Operating conditions:
– Temperature: -10°C to 55°C (14°F to 131°F)
– Humidity: 10% to 95% (non condensing) - Ingress protection: IP65
- HxWxD = 250*152*216 mm
(9.9*6*8.5 in.) - Weight: 2.2 kg (4.85 lb.)
- EMC/Safety standards: CE, CB, FCC
- RoHS, REACh and WEEE compliant

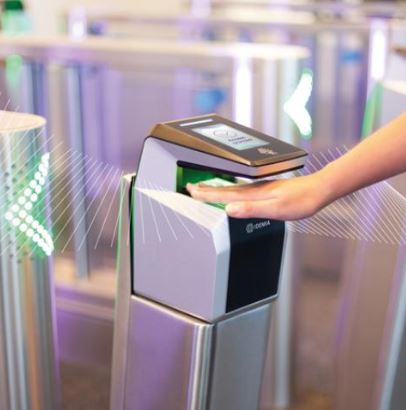

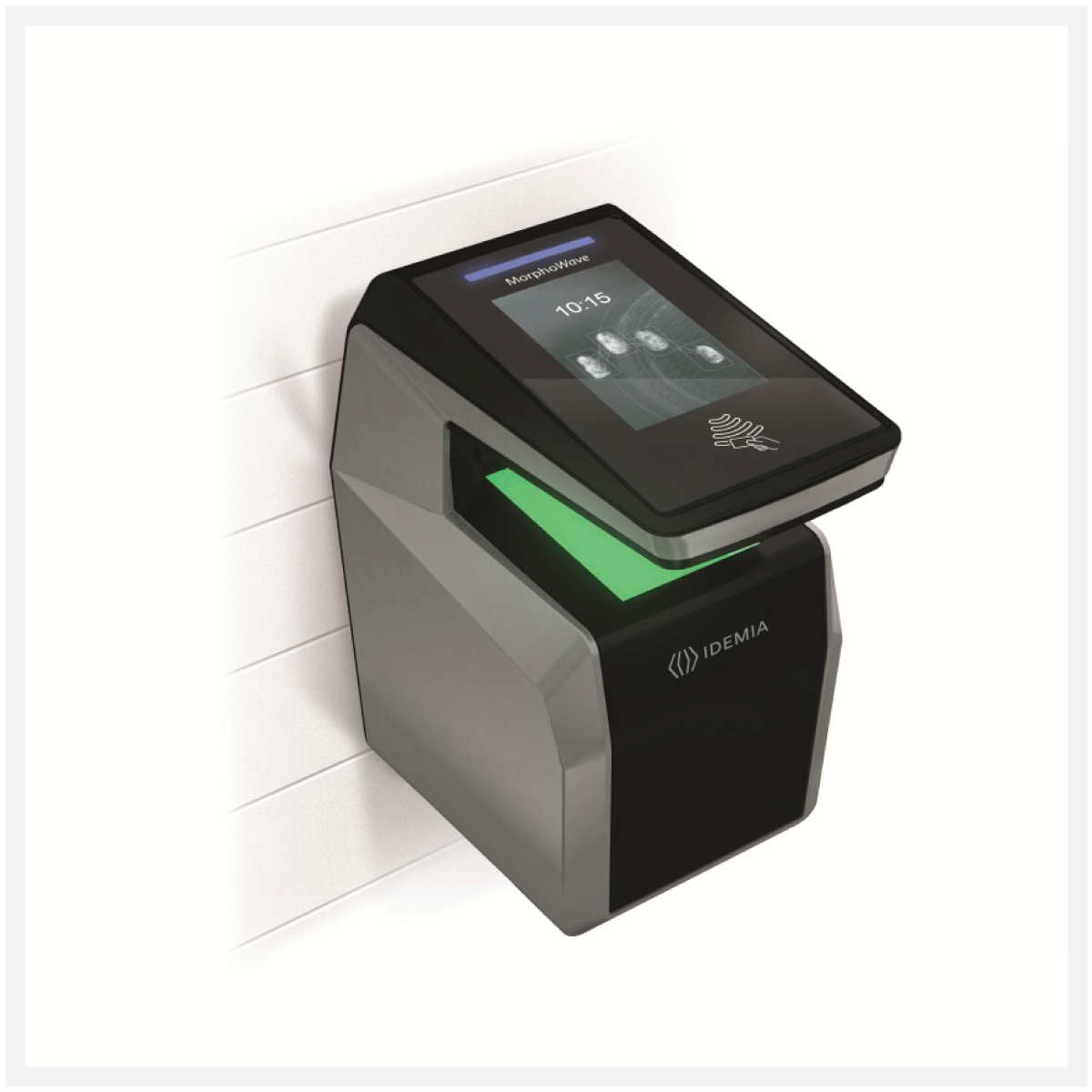

MorphoWave Compact is the newest addition to IDEMIA’s range of readers for frictionless biometric access control. It can capture and identify 4 fingerprints “on the fly” in less than a second, from a single wave of the hand. This contactless biometric reader improves flow in high traffic areas, the user simply keeps walking while going through the authentication. This masterpiece of engineering delivers the award-winning, field-proven performance of MorphoWave™ contactless 3D fingerprint technology in a stylish and compact wall-mounted device, suitable for any location. .
Features & Benefits
- Convenient & secure
- Versatile, easy deployment
- Optional multifactor authentication
- High throughput
- Touchless 3D fingerprint technology
- Captures and matches 4 fingers on either right or left hand, in any direction
- Immune to environmental factors (external light, dust)
- Copes with wet and dry fingers
- No latent prints left on scanner
- Mitigates hygiene concerns
