Description
Product specifications
HP Data Sheet
Operating system
Windows 10 Pro
Windows 10 Home
Processor
Intel® Pentium® Gold G5400 Processor (3.7 GHz, 4 MB Cache, 2 core, 54W) + Intel® UHD Graphics 610
Intel® Pentium® Gold G5400 Processor (3.7 GHz, 4 MB Cache, 2 core, 54W) + Intel® UHD Graphics 610
Intel® Core™ i3-8100 Processor (3.6 GHz, 6 MB Cache, 4 core, 65W) + Intel® UHD Graphics 630
Intel® Core™ i3-8100 Processor (3.6 GHz, 6 MB Cache, 4 core, 65W) + Intel® UHD Graphics 630
Intel® Core™ i3-9100 Processor (3.6 GHz, up to 4.2 w/Boost, 6 MB Cache, 2400 MHz, 4 core, 65W) + Intel® UHD Graphics 630
Intel® Core™ i3-9100 Processor (3.6 GHz, up to 4.2 w/Boost, 6 MB Cache, 2400 MHz, 4 core, 65W) + Intel® UHD Graphics 630
Intel® Core™ i5-8500 Processor (3.0 GHz, up to 4.1 GHz w/Turbo, 9 MB Cache, 6 core, 65W) + Intel® UHD Graphics 630
Intel® Core™ i5-9500 Processor (3.0 GHz, up to 4.4 GHz w/Boost, 9 MB Cache, 2666 MHz, 6 core, 65W) + Intel® UHD Graphics 630
Intel® Core™ i5-8500 Processor (3.0 GHz, up to 4.1 GHz w/Turbo, 9 MB Cache, 6 core, 65W) + Intel® UHD Graphics 630
Intel® Core™ i5-9500 Processor (3.0 GHz, up to 4.4 GHz w/Boost, 9 MB Cache, 2666 MHz, 6 core, 65W) + Intel® UHD Graphics 630
Intel® Xeon® E-2104G Processor (3.2 GHz, 8 MB cache, 4 core) + Intel® UHD P630 Graphics
Intel® Core™ i5-8600 Processor (3.1 GHz, up to 4.3 GHz w/Turbo, 9 MB Cache, 6 core, 65W) + Intel® UHD Graphics 630
Intel® Core™ i5-9600 Processor (3.1 GHz, up to 4.6 GHz w/Boost, 9 MB Cache, 2666 MHz, 6 core, 65W) + Intel® UHD Graphics 630
Intel® Xeon® E-2104G Processor (3.2 GHz, 8 MB cache, 4 core) + Intel® UHD P630 Graphics
Intel Core i5 8600 6C CPU
Intel® Core™ i5-9600 Processor (3.1 GHz, up to 4.6 GHz w/Boost, 9 MB Cache, 2666 MHz, 6 core, 65W) + Intel® UHD Graphics 630
Intel® Xeon® E-2224G Processor (3.5GHz, up to 4.7GHz w/Boost, 8MB cache, 4 core) + Intel® UHD Graphics P630
Intel® Xeon® E-2126G Processor (3.3 GHz, up to 4.5 GHz w/Turbo Boost, 6 MB cache, 6 core) + Intel® UHD P630 Graphics
Intel® Core™ i7-8700 Processor (3.2 GHz, up to 4.6 GHz w/Turbo, 12MB Cache, 6 core, 65W) + Intel® UHD Graphics 630
Intel® Xeon® E-2226G Processor (3.4GHz, up to 4.7 GHz w/Boost, 12MB cache, 6 core) + Intel® UHD Graphics P630
Intel® Xeon® E-2244G Processor (3.8 GHz, up to 4.8 GHz w/Boost, 8 MB cache, 4 core) + Intel® UHD Graphics P630
Intel® Xeon® E-2144G Processor (3.6 GHz, up to 4.5 GHz w/Turbo Boost, 8 MB cache, 4 core) + Intel® UHD P630 Graphics
Intel® Core™ i7-8700 Processor (3.2 GHz, up to 4.6 GHz w/Turbo, 12MB Cache, 6 core, 65W) + Intel® UHD Graphics 630
Intel® Xeon® E-2136 Processor (3.3 GHz, up to 4.5 GHz w/Turbo Boost, 12 MB cache, 6 core)
Intel® Xeon® E-2236 Processor (3.4 GHz, up to 4.8 GHz w/Boost, 12MB cache, 6 core)
Intel® Core™ i7-9700 Processor (3.0GHz, up to 4.7GHz w/Boost, 12MB Cache, 2666MHz, 8 core, 65W) + Intel® UHD Graphics 630
Intel® Core™ i7-9700 Processor (3.0GHz, up to 4.7GHz w/Boost, 12MB Cache, 2666MHz, 8 core, 65W) + Intel® UHD Graphics 630
Intel® Xeon® E-2174G Processor (3.8 GHz, up to 4.7 GHz w/Turbo Boost, 8 MB cache, 4 core) + Intel® UHD P630 Graphics
Intel® Xeon® E-2276G Processor (3.8 GHz, up to 4.9GHz w/Boost, 12MB cache, 6 core) + Intel® UHD Graphics P630
Intel® Xeon® E-2176G Processor (3.7 GHz, up to 4.7 GHz w/Turbo, 12 MB Cache, 6 core) + Intel® UHD Graphics P630
Intel® Core™ i9-9900 Processor (3.1 GHz, up to 5.0 GHz w/Boost, 2666 MHz, 16 MB cache, 8 core) + Intel® UHD Graphics 630
Intel® Xeon® E-2278G Processor (3.4 GHz, up to 5.0GHz w/Boost, 16MB cache, 8 core) + Intel® UHD Graphics P630
Chipset
Intel® C246
ENERGY STAR
ENERGY STAR Qualified Configuration
Memory
4 GB (1 x 4 GB) DDR4-2666 SODIMM Memory
8 GB (1 x 8 GB) DDR4-2666 SODIMM Memory
8 GB (2 x 4 GB) DDR4-2666 SODIMM Memory
8 GB (1 x 8 GB) DDR4-2666 SODIMM ECC Memory
16 GB (1 x 16 GB) DDR4-2666 SODIMM Memory
16 GB (2 x 8 GB) DDR4-2666 SODIMM Memory
16 GB (1 x 16 GB) DDR4-2666 SODIMM ECC Memory
16 GB (2 x 8 GB) DDR4-2666 SODIMM ECC Memory
32 GB (1 x 32 GB) DDR4-2666 SODIMM Memory
32 GB (2 x 16 GB) DDR4-2666 SODIMM Memory
32 GB (2 x 16 GB) DDR4-2666 SODIMM ECC Memory
32 GB (1 x 32 GB) DDR4-2666 SODIMM ECC Memory
64 GB (2 x 32 GB) DDR4-2666 SODIMM Memory
64 GB (2 x 32 GB) DDR4-2666 SODIMM ECC Memory
Internal M.2 storage
256 GB M.2 2280 PCIe NVMe TLC SSD
256 GB HP Z Turbo Drive Self-Encrypted (SED) TLC M.2 SSD
256 GB HP Z Turbo Drive TLC SSD
512 GB M.2 2280 PCIe NVMe TLC SSD
512 GB HP Z Turbo Drive Self-Encrypted (SED) TLC M.2 SSD
512 GB HP Z Turbo Drive TLC SSD
1 TB M.2 2280 PCIe NVMe TLC SSD
1 TB HP Z Turbo Drive TLC SSD
1 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) NVMe TLC SSD
2 TB HP Z Turbo Drive M.2 PCIe TLC SSD
Internal storage
500 GB 7200 RPM SATA 2.5″ HDD
1 TB 7200 RPM SATA 2.5″ HDD
256 GB 2.5″ SSD
2 TB 5400 RPM 2.5″ HDD
Internal OS load storage options
Operating System Load to M.2
Operating System Load to SATA
Graphics card
Integrated Intel® UHD Graphics 610 (included with Intel® Celeron® + Pentium® processors)
Integrated Intel® UHD Graphics 630 (included with Intel® Core™ processors)
Integrated Intel® UHD Graphics P630 (included with Intel® Xeon® processors)
NVIDIA® Quadro® P600 (4 GB GDDR5, 4 x Mini DisplayPort 1.4) Graphics
NVIDIA® Quadro® P1000 (4 GB GDDR5) MXM Graphics
Integrated network
Integrated Intel® I219-LM PCIe® GbE
Additional networking options
Intel® Wireless-AC 9560 (2×2) Gigabit Wi-Fi + Bluetooth® 5 (no-vPro™)
Power supply
135 W External 3-pin Power Supply
200 W External 3-pin Slim Power Supply
230 W External Power Supply
Graphics connectors
No Adapters Needed
HP DisplayPort to DVI-D Adapter
USB-C to DisplayPort Adapter
USB-C to HDMI Adapter
USB-C to VGA Adapter
External I/O Ports
3 DisplayPort 1.2 in Performance model.
1 Flexible I/O port with options:DP 1.2, HDMI, VGA, USB 3.1 Type C with Alt-DP mode, Thunderbolt 3.0, RJ-45 Ethernet (2nd LAN) or None

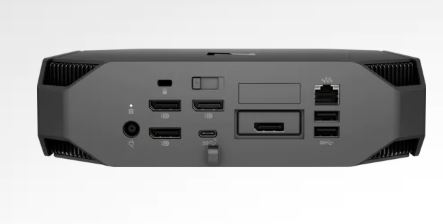

Side:1 headphone/microphone combo; 2 USB 3.0 (1 charging); 1 USB 3.1 Gen 2 Type-C™ (charging)
Back:1 RJ-45; 2 DisplayPort™ 1.2; 2 USB 3.0
Optional:Flex I/O
Back:1 RJ-45; 2 DisplayPort™ 1.2; 2 USB 3.0
Optional:Flex I/O
Weight
Starting at 4.5 lb
