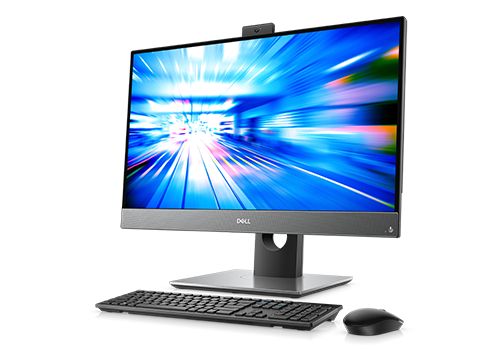

Dell OptiPlex 7770 All-in-One Desktop

Processor Intel® Core™ i3-9100 (4 Cores/6MB/4T/3.6GHz to 4.2GHz/65W); supports Windows 10/Linux Intel® Core™ i3-9300 (4 Cores/8MB/4T/3.7GHz to 4.3GHz/65W); supports Windows 10/Linux Intel® Core™ i5-9400 (6 Cores/9MB/6T/2.9GHz to 4.1GHz/65W); supports Windows 10/Linux Intel® Core™ i5-9500 (6 Cores/9MB/6T/3.0GHz to 4.4GHz/65W); supports Windows 10/Linux Intel® Core™ i5-9600 (6 Cores/9MB/6T/3.1GHz to 4.6GHz/65W); supports Windows 10/Linux Intel® Core™ i7-9700 (8 […]

Description

Processor

  • Intel® Core™ i3-9100 (4 Cores/6MB/4T/3.6GHz to 4.2GHz/65W); supports Windows 10/Linux
    Intel® Core™ i3-9300 (4 Cores/8MB/4T/3.7GHz to 4.3GHz/65W); supports Windows 10/Linux
    Intel® Core™ i5-9400 (6 Cores/9MB/6T/2.9GHz to 4.1GHz/65W); supports Windows 10/Linux
    Intel® Core™ i5-9500 (6 Cores/9MB/6T/3.0GHz to 4.4GHz/65W); supports Windows 10/Linux
    Intel® Core™ i5-9600 (6 Cores/9MB/6T/3.1GHz to 4.6GHz/65W); supports Windows 10/Linux
    Intel® Core™ i7-9700 (8 Cores/12MB/8T/3.0GHz to 4.8GHz/65W); supports Windows 10/Linux
    Intel® Core™ i9-9900 (8 Cores/16MB/16T/3.1GHz to 4.9GHz/65W); supports Windows 10/Linux

Operating System (Dell recommends Windows 10 Pro for business.)

  • Windows 10 Home (64-bit)
    Windows 10 Pro (64-bit)
    Windows 10 Embedded (OEM only)
    Ubuntu® 16.04 (64-bit)
    NeoKylin® 6.0 (China only)

Video Card

  • Intel® Integrated HD Graphics 630
    NVIDIA® GeForce® GTX 1050,  4GB

Memory7

  • Two SODIMM slots; Non-ECC dual-channel
    4GB (1x4GB) 2666MHz DDR4 Memory8
    8GB (2x4GB) 2666MHz DDR4 Memory8
    8GB (1x8GB) 2666MHz DDR4 Memory8
    16GB (2x8GB) 2666MHz DDR4 Memory8
    16GB (1x16GB) 2666MHz DDR4 Memory8
    32GB (2x16GB) 2666MHz DDR4 Memory8

Hard Drive

  • Dual storage and Optional Intel® Optane™ Memory
    2.5 inch 500GB 5400rpm SATA Hard Disk Drive
    2.5 inch 500GB 7200rpm SATA Hard Disk Drive
    2.5 inch 500GB 7200rpm FIPS Self Encrypting Opal 2.0 Hard Disk Drive
    2.5 inch 1TB 7200rpm SATA Hard Disk Drive
    2.5 inch 1TB 5400rpm SATA Hard Disk Drive
    2.5 inch 2TB 5400rpm SATA Hard Disk Drive
    M.2 128GB PCIe NVMe Class 35 Solid State Drive
    M.2 1TB PCIe Class 40 Solid State Drive
    M.2 2TB PCIe Class 40 Solid State Drive
    M.2 256GB PCIe NVMe Class 40 Solid State Drive
    M.2 256GB PCIe NVMe Class 35 Solid State Drive
    M.2 512GB PCIe NVMe Class 40 Self Encrypting Opal 2.0 Solid State Drive
    M.2 512GB PCIe NVMe Class 40 Solid State Drive
    M.2 512GB PCIe NVMe Class 35 Solid State Drive

Warranty

  • Limited Hardware Warranty9
    Standard Next Business Day On Site Service after Remote Diagnosis10
    Optional 3-year Dell ProSupport™ and ProSupport Plus™
    4 year and 5 year service and support options11

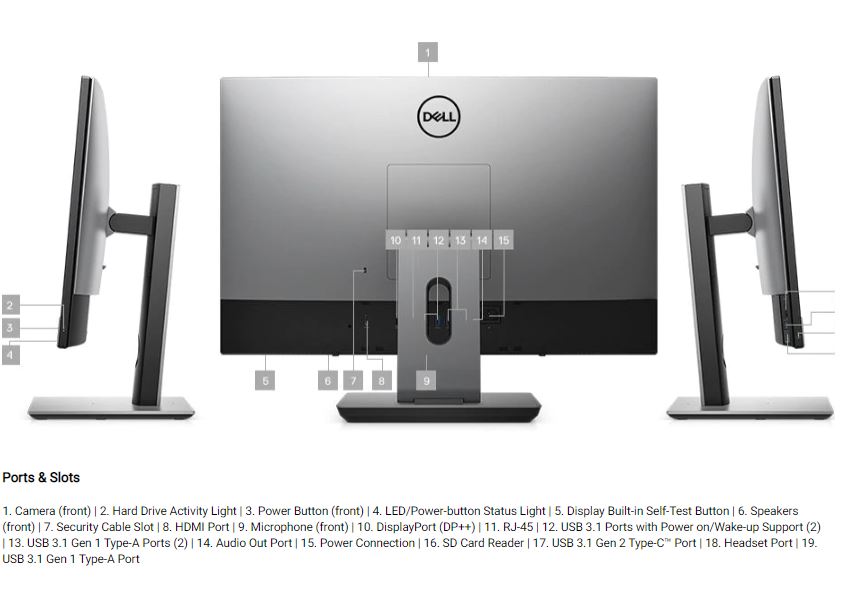

Ports

  • 1 USB 3.1 Type-C  Gen 2 (side)
    1 USB 3.1 Type-A Gen 1 with PowerShare (side)
    2 USB 3.1 Type-A Gen 1 (side)
    2 USB 3.1 Type-A Gen 2 (side)
    1 SD Slot (side)
    1 DisplayPort Out (rear)
    1 HDMI In (rear on Full HD only)
    1 HDMI Out (rear)
    1 Universal Audio Jack (side)
    1 Audio Line-Out (rear)
    1 RJ-45 (rear)
    1 Power Connection (rear)

Optical Drive

  • External DVD+/-RW available in Height Adjustable Stand (Optional)

Slots

  • Two M.2 connectors (one for Wi-Fi card, one for Solid State Drive)
    SD Medical Card Reader

Dimensions & Weight

  • Full HD Touch:
    Height: 38.9cm (15.31″) x Width: 61.4cm (24.17″) x Depth: 5.79cm (2.28″)
    Weight: 8.63kg (19.02lb)

    Full HD Non-Touch & 4K Non-Touch:
    Height: 38.9cm (15.31″) x Width: 61.4cm (24.17″) x Depth: 5.79cm (2.28″)
    Weight: 8.41kg (18.54lb)

Chassis

  • Bays – 1 internal 2.5inch

    Stands
    OptiPlex All-in-One Basic Stand
    Optional OptiPlex All-in-One Height Adjustable Stand
    Optional OptiPlex All-in-One Articulating Stand

Power

  • 80 PLUS internal Power Supply Unit
    155W EPA Bronze
    200W EPA Platinum
