Description
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Bezel
Optional LCD bezel or security bezel
Dimensions & Weight
Height
434.5mm (17.1″) (base height)
443.5mm (17.5”) (with foot)
Width
217.9mm (8.6″) (base width)
304.5mm (12.0”) (with foot)
Depth
692.8mm (27.3″)
Weight
42.36kg (93.4lbs.) (Maximum with all drives 32 x 2.5 inch)
49.7kg (109.5) (Maximum with all drives 18 x 3.5 inch)
Memory*
DIMM Speed
Up to 2993 MT/s
Memory Type
RDIMM
LRDIMM
NVDIMM
Memory Module Slots
24 DDR4 DIMM slots (12 NVDIMM only)
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 3TB
LRDIMM 3TB*
NVDIMM 192GB
Management
Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
Redhat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
1100W 48VDC, 1100W 380HVDC, 750W 240HVDC, 495W, 750W, 1100W, 1600W, 2000W, 2400W, Platinum
750W, Titanium
Hot plug power supplies with full redundancy option
Up to 8 hot plug fans with full redundancy
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Storage Controllers
Internal Controllers
PERC H330, H730P, H740P, HBA330
External Controller (RAID)
H840, 12Gbps SAS HBA
Software RAID
S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB, 480 GB
Internal Dual SD Module
Accelerators
Up to four 300W and eight 150W GPUs
NVIDIA Tesla P100, P40, K80M, M60, M10, AMD S7150, S7150X2
Form Factor

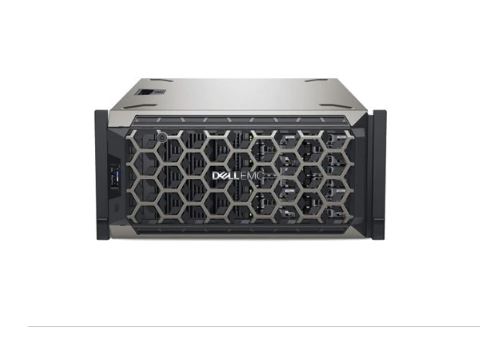

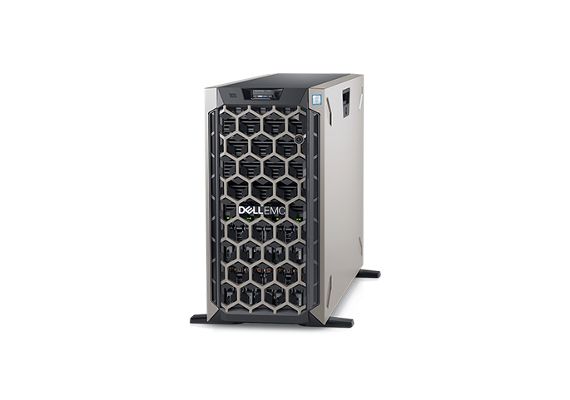

5U Tower or Rack Server
Slots
PCIe
8 x Gen 3 slots (4 x 8)
8 x Gen 3 slots (4 x 16)
Video Card
1 x VGA
Storage
Front Bays
Up to 8 or 18 x 3.5″ SAS/SATA (HDD/SSD), max 288TB
Up to 16 x 2.5″ SAS/SATA (HDD/SSD), max 61TB
Up to 32 x 2.5” SAS/SATA (HDD/SDD), max 122TB
Up to 16 x 2.5” with up to 8 NVMe, SAS/SSD/NVMe (HDD/SDD), max 112TB
Ports
Network Options
2 x 10GbE
Front Ports
1 x Dedicated iDRAC micro-USB
1 x USB 2.0
1 x USB 3.0
6 x USB 2.0/3.0
